aftermarket clutch cover

[jsolo_357]

trying some DIY mods to the bike. just changed to a clear stator cover. no problems, took about 45 mins. clutch cover a little different. how do i remove the little clear window where i check the oil level from the old clutch cover and install it in the aftermarket clear clutch cover? any answers/help will be greatly appreciated................................



[rubbersidedown]

Remove the sealant from the inside,then place a socket the size of the "window" on it and give it a couple whacks.From the outside in,of course.Its just a "press in fit" if I recall.

Its proper name is the "sight glass" I believe,if you wanted to do a search.

RSD.



[rubbersidedown]

They talk about it here.... www.suzukihayabusa.org/forum/index.php?topic=61932.0

Some are clipped in,some are glued in,some are put in with a seal....not our Busa's thou.

RSD.



[jsolo_357]

thanx. is there a certain kind of sealant used for the install on the aftermarket cover?



[rubbersidedown]

thanx. is there a certain kind of sealant used for the install on the aftermarket cover?

I couldn't give you a brand name,but what you need to ask for at the parts store is:

I need a silicone that is hi-temp and impervious to oil,and something that will stick to my aftermarket cover,which I'm assuming is alluminum. Thats it.Nothing too special.

RSD.


RSD.



[pan]

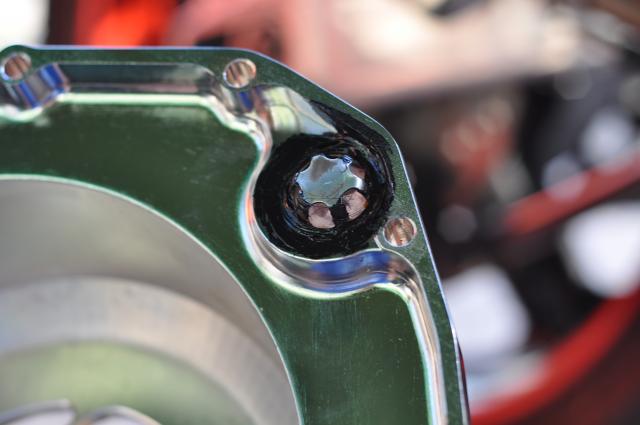

I removed it like this

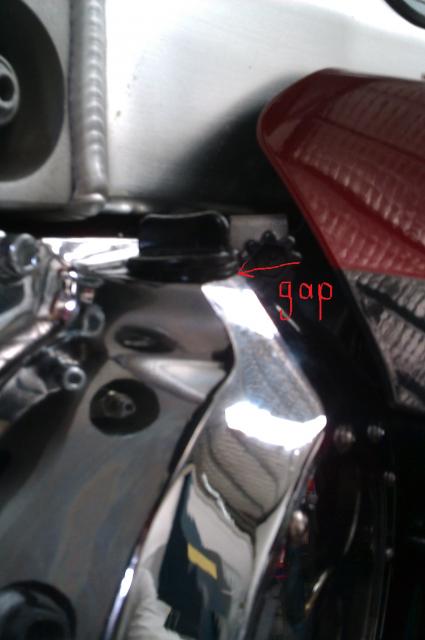

Mine looks like this, but I've had problems with it


The build quality of the Chinese cover is crappy. The cap doesn't fit on straight, hence there's a slow leak


Hope yours isn't the same one!



The stuff I used to stick the window thingie in place is called Sikaflex



[rubbersidedown]

Sucks about the leak Pan. Maybe a thicker o-ring? Tiny bit of silicone after each oil change? Wrap the threads in plumbers tape?

What brand of cover? So we can choose to stay away from if desired.

Chinese krap

RSD.



[rubbersidedown]

That cover does look dope thou. Cost?

RSD.



[frisbee]

Mine was made by Pusher . He used to be on the board. He showed how to make them out of the stock covers somewhere I just can't find it . I got yellow plexi on mine and had the clutch cover powder coated yellow , been on there for about 5 years now.



[pan]

Sucks about the leak Pan. Maybe a thicker o-ring? Tiny bit of silicone after each oil change? Wrap the threads in plumbers tape?

What brand of cover? So we can choose to stay away from if desired.

Chinese krap

RSD.

Thicker o-ring didn't work. It just got pinched and forced out one end. Didn't try plumber's tape.
Heat proof silicone did the trick!
The cover was about $80 delivered off eBay.



[rubbersidedown]

Thats cool frisbee,its like looking thru a submarine porthole.

RSD.



[1busa]

Sorry but those Chinese knock off covers are No Bueno Your a brave man for attempting to make them work..... Im too paranoid to take a chance like that, I'd be going down to my garage in the middle of the night parking my busa under a white sheet inspecting it for leaks



[pan]

Works okay now, without leaks, but in hindsight I would've paid a bit extra and bought something better...



[FreezingIrish]

Hi all, can any of the German, French or Dutch members of this forum recommend a good place to get a clear clutch cover (or window clutch cover).

im looking out for one but at a good price in the EU so far Ive seen crazy import options only.....

Cheers...
