China no-cut sliders... T-rex guys, I need some help

[Rothman]

So I decided to spend the $15 or so dollars on some knock off T-rex sliders. They came in today and I'm a little puzzled as to how they mount up. I googled it and found a very helpfull page with pics and all. The one thing that was not shown however was where the heck the little aluminum bushings go. Looking at a pic of the T-rex's, the kit is the same but has two aluminum bushings rather than one. My bike is in the shop this week so I don' have it to dry fit up yet. I'm just trying figure it all out for when I get her back.

On a side note, these things are actually very good quality for being so darn cheap. I'm a machinist and a welder and I can honestly say that these things are welded like a friggin tank and are robust enough to satisfy even the most skeptical of folks.



[wht_scorpion]

This would be good if the pics was up



[GsxrBots]



[moloko]

I would never use no cut sliders to begin with.



[Rothman]

I would never use no cut sliders to begin with.

That's nice.... I'm going too.


I'll put up pics as soon as I can.



[Rothman]

Can't find my camera cable... It's always something.

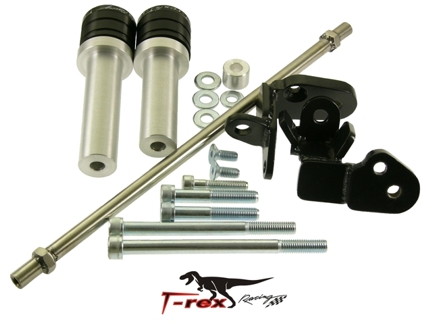

Anyway, in this pic of the T-rex sliders you can see the bushing I'm talking about by the washers. My China kit came with two, one slightly larger than the other. This is the best I can do till I find my camera cable.



[frisbee]

I just pay for insurance. J/K I do want to see how those look when you get them on .



[kromdom]

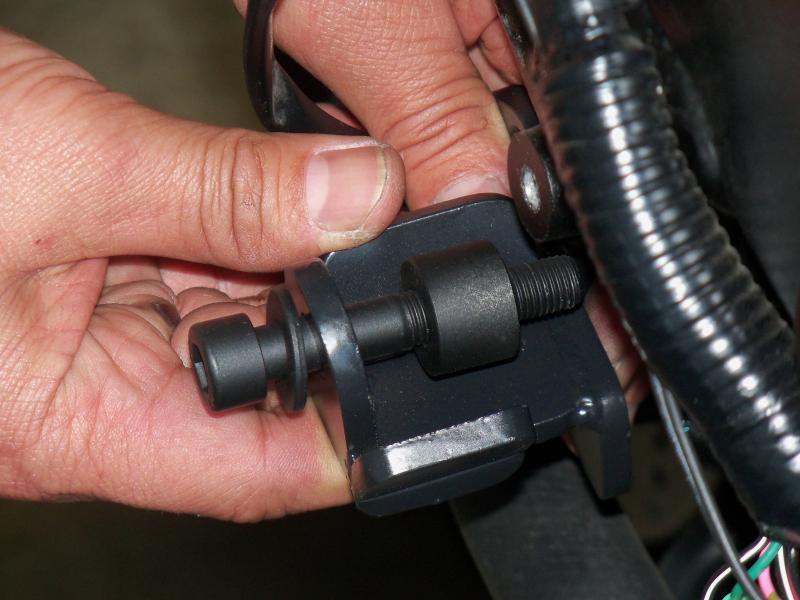

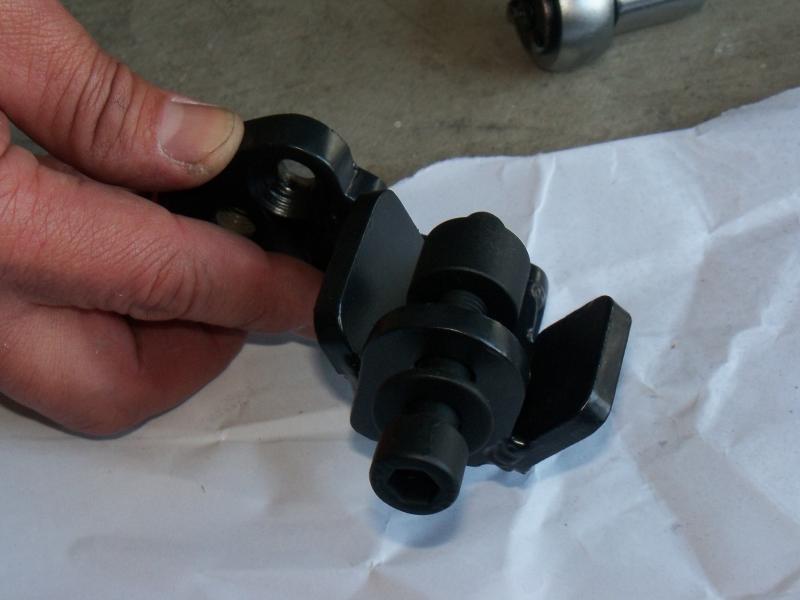

that "bushing" is a spacer for use with the shorter stem. found a pic, hope this helps



[Rothman]

that "bushing" is a spacer for use with the shorter stem. found a pic, hope this helps

Awesome! That is exactly what I needed. Thanks so much!



[Rothman]

Okay, so apparently something is not right. The little cross bar rod that goes behind the radiator hits the fan shroud pretty squarely, not sure if I can go behind it. I think I have the brackets on right, they really only fit one way. Looking at the bike, I can't even look straight through behind the radiator, there's just no room. Is that what the flat spot on the crossbar is for? To go around the fan shroud? If that's the case these just will not work with a BDE exhaust as the rod will hit the primaries on the header. Any Ideas? This kit is and exact copy of T-rex.



[Rothman]

Anybody else have fitment issues with their exhaust and t-rex's?



[HayaQusa]

I paid $69 for it last year on ebay. I didn't have any problem with it, accept the bar that go across is like 1/32 from the radiator fan. I Wish they make a replacement puck for it. Where did you get your and $15 I'll get another one to make a race rail out of it.



[Rothman]

I paid $69 for it last year on ebay. I didn't have any problem with it, accept the bar that go across is like 1/32 from the radiator fan. I Wish they make a replacement puck for it. Where did you get your and $15 I'll get another one to make a race rail out of it.

Bought them from Amazon, ebay has them as well. What kind of exhaust do you have? The cross bar hits my fan and there's really not much if any room between the fan and the primaries.



[BusaLouie]

I have the Trex sliders on my gen 1. The flat spot does go around the fan shroud bracket. Just be careful mine was pushing on the bracket I guess a little to hard and eventually the fan shroud wore through a couple fins causing a pin hole leak. I ended up pulling the rad and fan and bending the beaker a little thus pulling it a hair further away from the rad fins. Bike still cools down just like before and I fixed my radiator. No leaks since and no overheating.



[BusaLouie]

Bendin the bracket *



[cheferman65]

$15 and no instructions
Good luck with those, post up some pics when you get them mounted!



[Rothman]

$15 and no instructions
Good luck with those, post up some pics when you get them mounted!

I'm quite sure they would work fine on a stock bike. With a Brock's exhaust however, the primaries stick out further and are in the way.



[buddha65281]

Did you ever find instructions for this? Here are the ones sent to me for my install, this is from D2MOTO!

99-07 SUZUKI HAYABUSA GSXR-1300 FRAME SLIDER INSTALLATION INSTRUCTIONS
SKU/PART NUMBER FS050

Thank you for purchasing the Volar Motorsport Frame sliders. We highly recommend a qualified mechanic perform this install. These are basic installation instructions. This install must be performed with the proper tools, properly calibrated torque wrench, factory torque specifications, proper safety protection, and Suzuki factory service manual. Motorcycle must be fixed in a safe and secure position before installation can begin. DO NOT remove both engine studs at the same time. Volar Motorsport does not assume any responsibility for installation. Volar Motorsport is not responsible for any part of your motorcycle for any reason.

For an easier installation please carefully read all instructions before performing the installation process.

Note: We highly recommend the use of blue loctite 243 on spike cap when
applicable.

INSTALLATION:

1. Remove the left and right side fairings
2. Remove left side engine mount stud
3. Install left side steel bracket with spacer using the 10 x 1.25 x 60mm bolt and flat washer
4. Install the steel bar onto the left bracket using the 8 x 22mm countersink bolt. Make sure the grooved section of the bar is facing the radiator and the nut end is facing the right side
5. Remove the right side engine mount stud and pinch bolt
6. Install the right side bracket between engine and original stock spacer using the 10 x 1.25 x 60mm stud and flat washer. Reinstall the pinch bolt using the 10 x 1.25 x 40mm bolt with two flat washers, do not fully tighten bolts
7. Install steel bar onto right side bracket using the 8 x 1.25 x 20mm countersink bolt. Do not fully tighten
8. Adjust steel bar so that it is not contacting the radiator. Tighten all bolts to factory torque specs
9. Reinstall fairings
10. Install frame sliders

NOTE READ CAREFULLY:

Volar Motorsport cannot guarantee frame sliders will protect your motorcycle from any extent of damage. Volar Motorsport frame sliders are meant to help possibly save the frame from damage in the event of a crash. Volar Motorsport frame sliders have shown good results in saving engine cases, bodywork, levers, and so on. Customers might assume no damage will occur with installation of frame sliders. The fact is, some crashes may result in minimal to no damage to the motorcycle while in other crashes the motorcycle may be completely destroyed.


ENJOY!!!!!



[Rothman]

Did you ever find instructions for this? Here are the ones sent to me for my install, this is from D2MOTO!

99-07 SUZUKI HAYABUSA GSXR-1300 FRAME SLIDER INSTALLATION INSTRUCTIONS
SKU/PART NUMBER FS050

Thank you for purchasing the Volar Motorsport Frame sliders. We highly recommend a qualified mechanic perform this install. These are basic installation instructions. This install must be performed with the proper tools, properly calibrated torque wrench, factory torque specifications, proper safety protection, and Suzuki factory service manual. Motorcycle must be fixed in a safe and secure position before installation can begin. DO NOT remove both engine studs at the same time. Volar Motorsport does not assume any responsibility for installation. Volar Motorsport is not responsible for any part of your motorcycle for any reason.

For an easier installation please carefully read all instructions before performing the installation process.

Note: We highly recommend the use of blue loctite 243 on spike cap when
applicable.

INSTALLATION:

1. Remove the left and right side fairings
2. Remove left side engine mount stud
3. Install left side steel bracket with spacer using the 10 x 1.25 x 60mm bolt and flat washer
4. Install the steel bar onto the left bracket using the 8 x 22mm countersink bolt. Make sure the grooved section of the bar is facing the radiator and the nut end is facing the right side
5. Remove the right side engine mount stud and pinch bolt
6. Install the right side bracket between engine and original stock spacer using the 10 x 1.25 x 60mm stud and flat washer. Reinstall the pinch bolt using the 10 x 1.25 x 40mm bolt with two flat washers, do not fully tighten bolts
7. Install steel bar onto right side bracket using the 8 x 1.25 x 20mm countersink bolt. Do not fully tighten
8. Adjust steel bar so that it is not contacting the radiator. Tighten all bolts to factory torque specs
9. Reinstall fairings
10. Install frame sliders

NOTE READ CAREFULLY:

Volar Motorsport cannot guarantee frame sliders will protect your motorcycle from any extent of damage. Volar Motorsport frame sliders are meant to help possibly save the frame from damage in the event of a crash. Volar Motorsport frame sliders have shown good results in saving engine cases, bodywork, levers, and so on. Customers might assume no damage will occur with installation of frame sliders. The fact is, some crashes may result in minimal to no damage to the motorcycle while in other crashes the motorcycle may be completely destroyed.


ENJOY!!!!!

Awesome, much appreciated my friend. I'm going to give this another shot when I get back home.



[methyman]

I paid $69 for it last year on ebay. I didn't have any problem with it, accept the bar that go across is like 1/32 from the radiator fan. I Wish they make a replacement puck for it. Where did you get your and $15 I'll get another one to make a race rail out of it.

NO CUT FRAME SLIDERS 99-07 SUZUKI HAYABUSA GSXR 1300 | eBay
