Core Moto SS brake line on Gen3

[Armoni76]

It's Christmas mods !

I've been installing Brembo MC and SS brake lines from Core Moto. The quality of the lines are really good, instructions were also crystal clear. Only two brackets to modify, no big deal.

I chose to keep the ABS, so it's lines #3, 4 and 5

For now I'm just waiting for a custom clutch line from a local shop here in France before taking the first test drive.

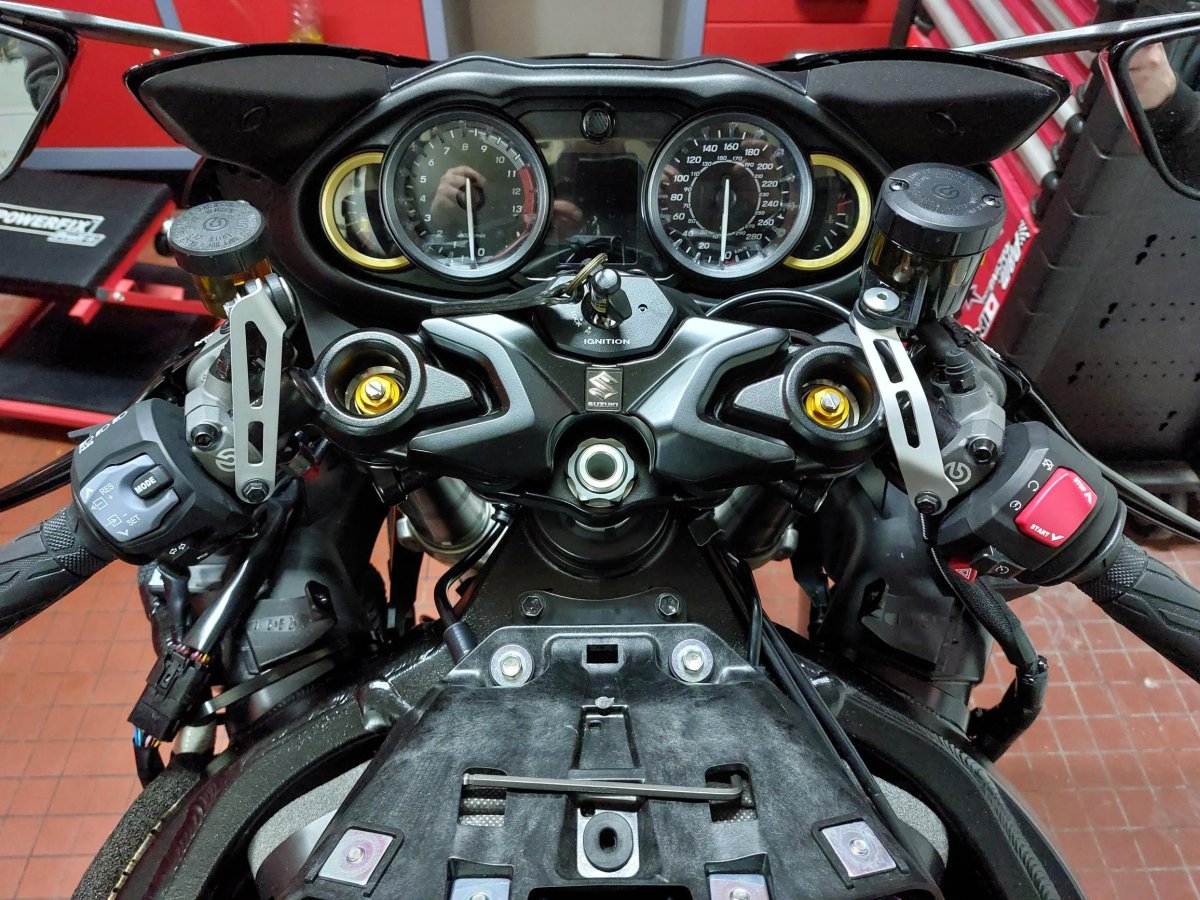

Here is some pictures



[Armoni76]

FYI the installation guide attached



[TonyM995]

Looks beautiful, I really like the dark reservoir you got.



[SS4Luck]

I wish there was a way to mount the reservoir that was just shorter cleaner and better lol. I hate the way mine looks.


Why didn’t you get a clutch line from core moto too?



[Armoni76]

Looks beautiful, I really like the dark reservoir you got.

Like it too ! These are Brembo genuine parts : 110A26375 for the brake and 110A26376 for the clutch, it does include brackets and bolts



[Armoni76]

I wish there was a way to mount the reservoir that was just shorter cleaner and better lol. I hate the way mine looks.


Why didn’t you get a clutch line from core moto too?

So do I, these are way too big... maybe if I find something more discreet I'll change it like this black one below.

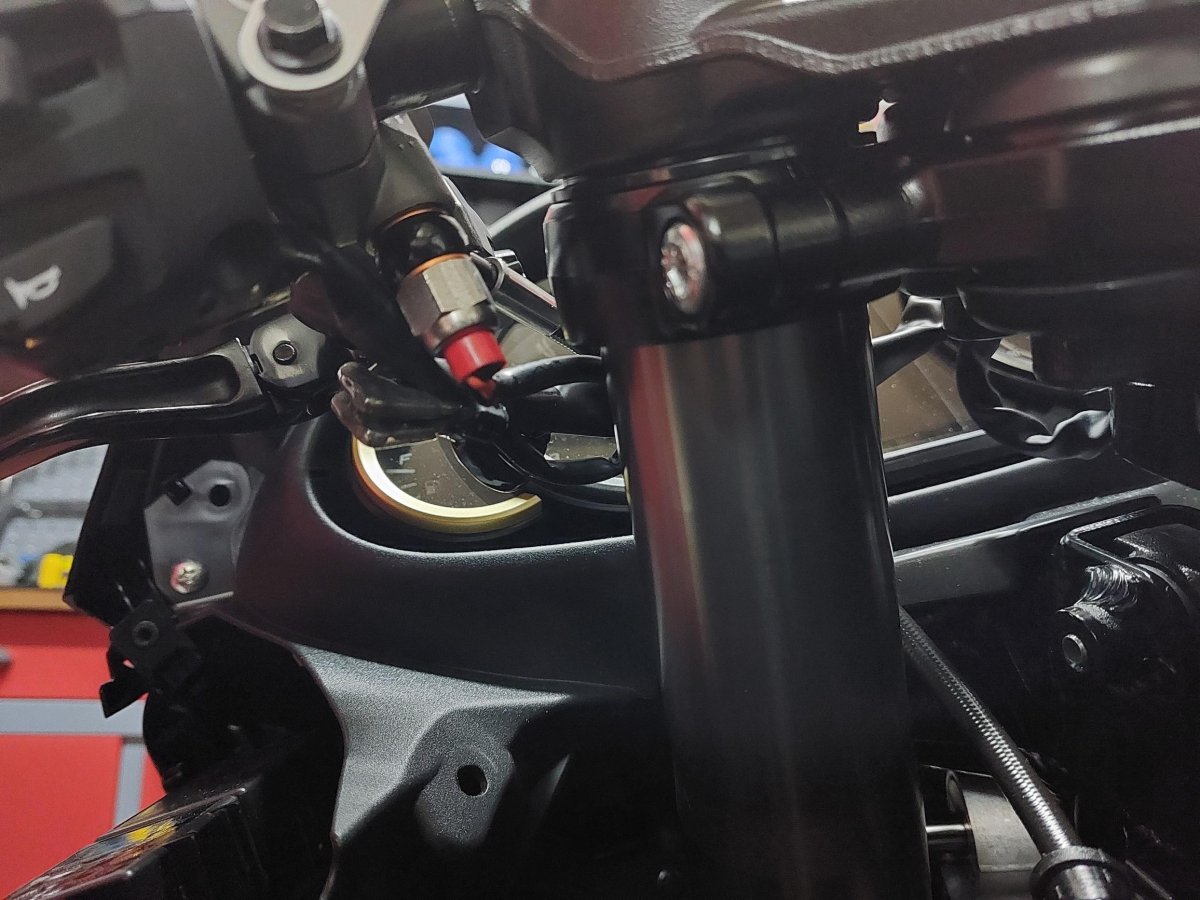

I didn't get a core moto clutch line because I didn't know the genuine line would be too short, also had to install an hydraulic switch for the clutch by the way



[Bumblebee]

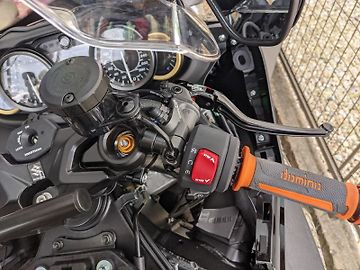

So do I, these are way too big... maybe if I find something more discreet I'll change it like this black one below.
I didn't get a core moto clutch line because I didn't know the genuine line would be too short, also had to install an hydraulic switch for the clutch by the way

View attachment 1659857

View attachment 1659855

View attachment 1659856

For the life of me, I don't know why they didn't come like that from the factory.......



[sixpack577]

AND

ASV now makes levers for several Brembo brake and clutch MC's!!
