new to board putting my 01 back on the road need help

[MKFA]

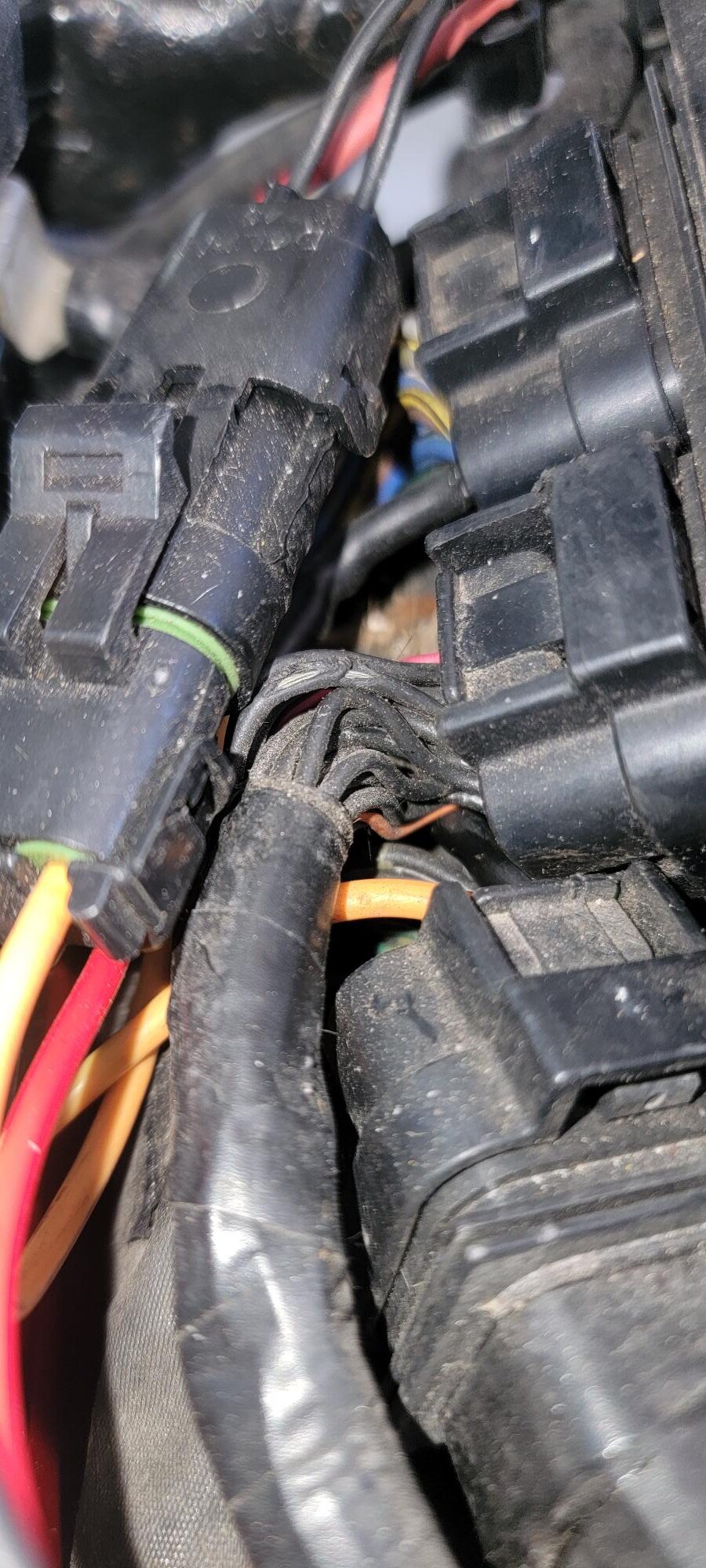

I'm trying to put my 01 back on the road and mice have gotten in to eat some insulation at the ECM connector and I want to take the effected wire out and put shrink tube over the effected area does anyone know where i can get the proper tool to get the wire out.
it's the 26 pin connector
Thanks

Richard



[Hayabusa Wannabe]

bump @smithabusa

Welcome to the forum @MKFA.



[smithabusa]

Your thumbnail

Unlock the connector, pull wire out,the little white tab



[MKFA]

thanks Smithbusa, although I'm not sure what you mean by the white tab as I can't figure out how to take apart the casing of the connector.
I will look at it as I'm going to the shope now try and work on it agian.

richard



[smithabusa]

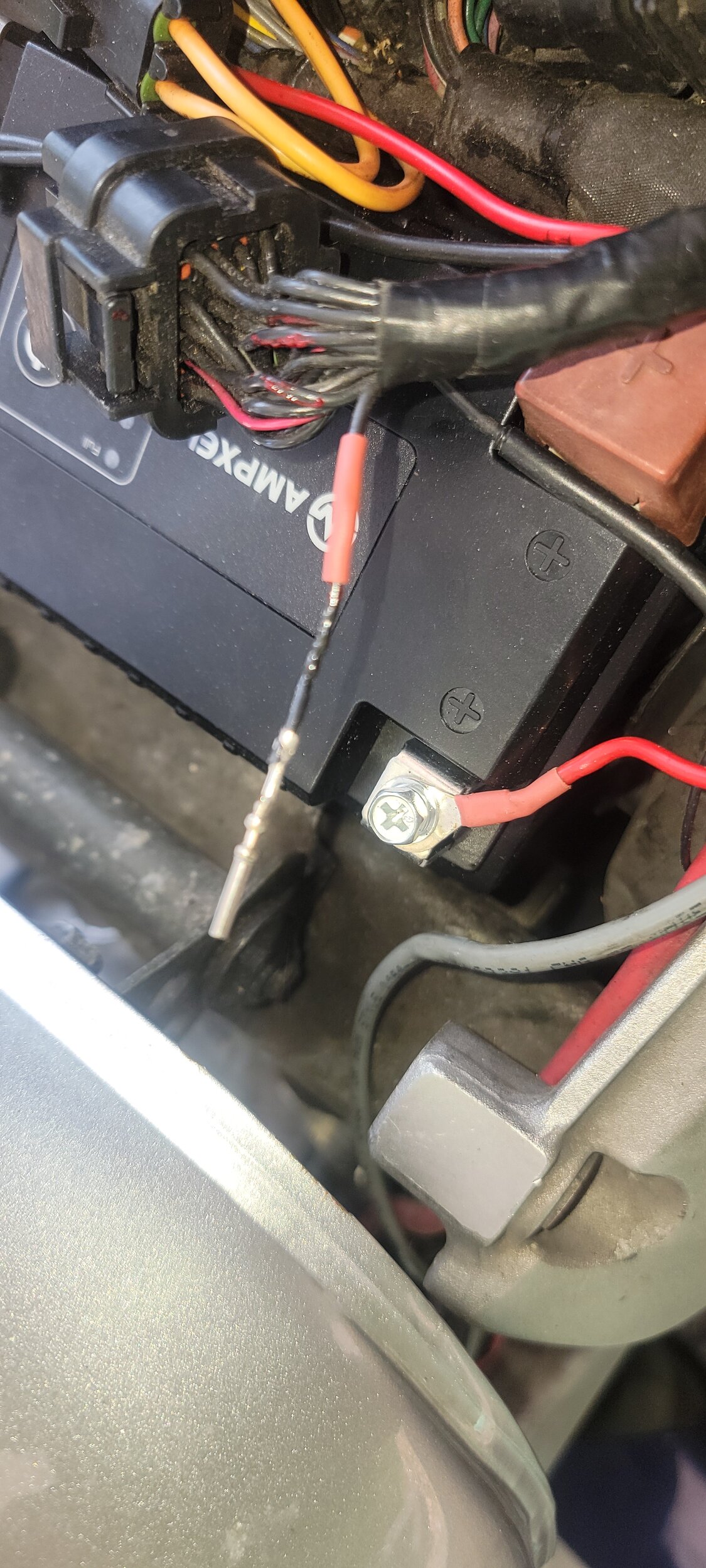

Push this in



[MKFA]

Well that looks easy.

Thanks I'll try that tomorrow



[smithabusa]

Yessir



[MKFA]

bump @smithabusa

Welcome to the forum @MKFA.

thanks



[202mphbusa]

I have done it probably 18,000 times
Tip make sure to look close and visually inspect that you haven't pulled any out

If any are out a bit pushing the clip Back will be hard or impossible
DONT FORCE IT



[MKFA]

Thanks for that tip 202



[MKFA]

Well thanks to Smithabusa and 202mphbusa for their helpful hints it was really that easy and 202 you were right even if one other wire is out by a little bit the white tab wouldn't go back in.

Thanks again my mind is now at ease (at least on this matter)
