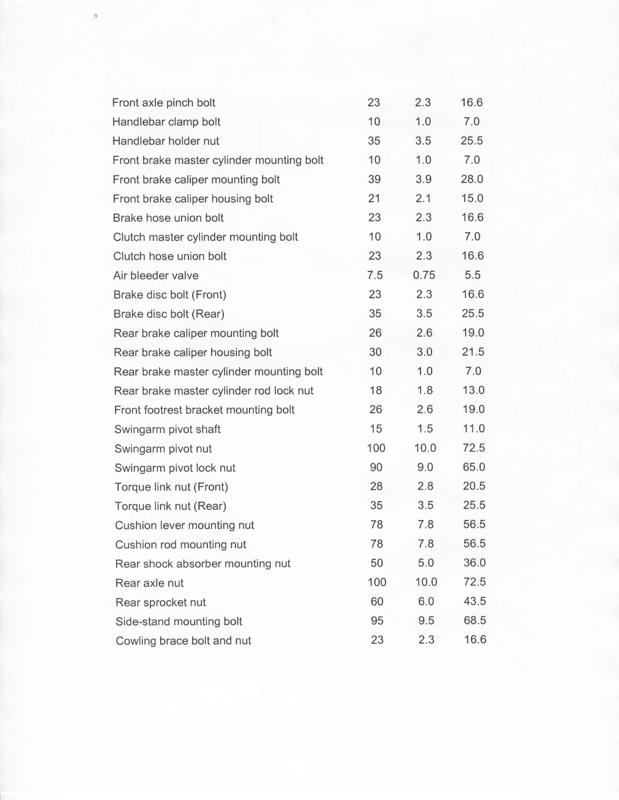

Gen 1 List of torque values for most bolts

mike1180

Banned
Joined
Dec 20, 2006
Messages
5,675
I found this and thought I should share.
I haven't checked all of them but here they are:

Hmmm... no attachments.
Here it is again:








Last edited by a moderator:
This would BE A GREAT THREAD TO BE PINNED!!!! HINT HINT ADMINS :thumbsup::thumbsup:

Wow, how did we miss this one. Pinned!

I found this and thought I should share.
I haven't checked all of them but here they are:

Well done, very important and useful to check for the right tork when needed. thanks alot that is just I am looking for:thumbsup::clap:
