06 Bosa / Zex Dry system

With a 540 you can do fun things like this. I dont know whats more fun wheelies in the car or on the bike.


(GPW @ Dec. 18 2006,19:55)
(BLACK051K @ Dec. 18 2006,17:48) Get MPS Fast FI unit and slap a #40 jet and be done with it!

http://www.mpsracing.com/products/MPS/fi01.asp
Looks like the Dobek TFI box, rebranded with a MPS logo. Great for adding fuel won't take it away if needed.
I don't think the tfi has an full instant rich feature though like the MPS part though....Great Part if you wanna do on the fly nitrous passes.

Just purchaced a PC and waiting for it to come in .. Do they have maps or Zex ?? Seems like a stock bike with the zex Busa system should be a cookie cutter setup that they would have already for the 30 40 50 HP shot range.
Will see

(BLACK051K @ Dec. 20 2006,10:24) Bump up the High bars on PC when spray'n or download richer map in areas(RPM range) intended on spray'n.
I see what you are saying about bump it up 3 bars now that I have a PC.
What I think I need to do is adjust the mix at 100% throttle only since my system only kicks in at 100% make sence to you guys ? If so anyone got a map that they can show me that has worked on a dyno.

the bike I just bought was built for drag,it has a dry shot with delay box and wot switch it was mapped for the NOS and runs 10% fat.I havent encountered any problems with leaving it this way for daily rides

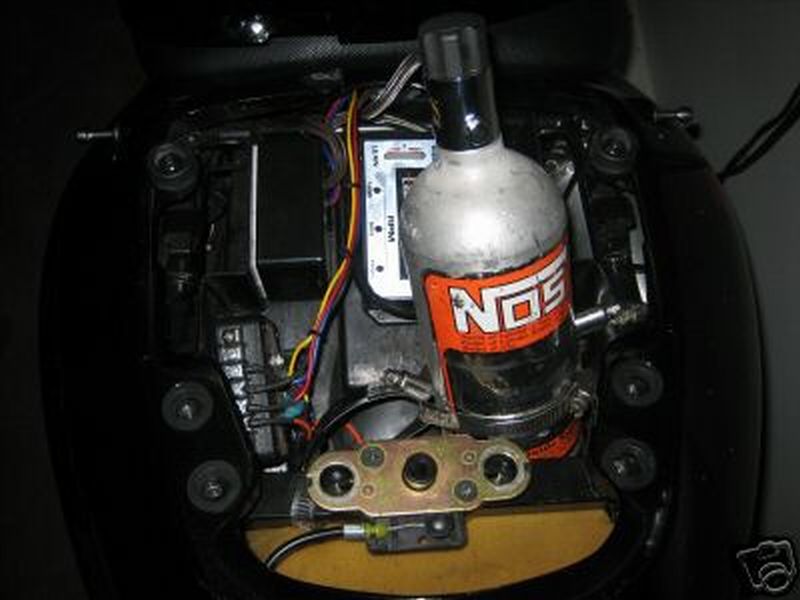

i put zex busa kit on my 06 busa used a zex rpm switch to activate at 6,500 rpms i set it to shut off spray
at 10,000 i use a techlusion box to add fuel from 6k and up --box is tied into arming switch which is hidden in the hole in the tail section easely reached while riding bike ---has stock exhaust w/ bottle in hump works great
tech box and mps fast fuel same thing both add fuel but does not take away fuel if u have a after market exhaust go w/power commander

another place to consider putting the arming switch....your hands never have to leave the bars,just make a simple L shaped bracket and bolt it to the clutch lever bolt


works great

(chevelle @ Jan. 10 2007,14:56) another place to consider putting the arming switch....your hands never have to leave the bars,just make a simple L shaped bracket and bolt it to the clutch lever bolt


works great
sweet setup bro,mines on the right side dashboard

(gjitsu @ Jan. 10 2007,14:11) i put zex busa kit on my 06 busa used a  zex rpm switch  to activate at 6,500 rpms i set it to shut off spray
at 10,000 i use a techlusion box to add fuel from 6k and up --box is tied into arming switch which is hidden in the hole in the tail section easely reached while riding bike ---has stock exhaust w/ bottle in hump works great
tech box and mps fast fuel same thing both add fuel but does not take away fuel if u have a after market exhaust go w/power commander
Tech box and fast fi box ARE the same box but they are only alike until you hit the nitrous button then that's where the tech. box falls short..Don't misinform folks playing with nitrous...this is how many have gotten melted over the years

i just got rid of a 72 chevelle ss with a 250 shot of spray the car was built for street racing. i love that 68 mine would pull the wheels about 6" on the street i will try and post a video. i cant wait to get my busa back together with the spray to see how it goes. i have to tell you guys you all know alot about these bikes and i cant stop reading the advise helps alot. thank you
