Need Pics of Undertails

[arey]

Damn InfiniteReality That looks sweet. How did you do it?



[nitrousjunkie]

I have seen the UFO and I find it tacky because of the clear lens. You can see the tail light and the little signal lights, If the lens were red it would look much better. That's just my opinion.

Like this.....



[InfiniteReality]

thanks! Just took time, about 3 hours of just soldering.

Basically just cut the back of the housing off (where bulbs plug in), cut a blank circuit board over each area, layout the LEDs the best way possible and start soldering! I wired 6 LEDs in series and then 3 sets of those in parallel with a 33 ohm (if I remember right) resistor per set. I also have the signals integrated in it as well. Just installed a trickflasher.com so I have 5 different flashing patters, plus my flashers work normally now. Also used a trailer integrator for the signal part. I'll get some video and more pics and post a thread in a week or so.

here's a schematic on the wiring of the integrator with diodes so my signal part of the light would work seperate from the brake light on each lense. The signals are cool looking in person and worth the extra time in wiring by themselves on the circuit board.



[Bigbody]

I have seen the UFO and I find it tacky because of the clear lens. You can see the tail light and the little signal lights, If the lens were red it would look much better. That's just my opinion.

Like this.....

I want one like this with regular bulbs and integrated turn signals.  Anyone know where I can get one like that?



<!--EDIT|NVeeus04
Reason for Edit: None given...|1146675891 -->



[BiG-T]

thanks!  Just took time, about 3 hours of just soldering.

 Basically just cut the back of the housing off (where bulbs plug in), cut a blank circuit board over each area, layout the LEDs the best way possible and start soldering!  I wired 6 LEDs in series and then 3 sets of those in parallel with a 33 ohm (if I remember right) resistor per set.  I also have the signals integrated in it as well.  Just installed a trickflasher.com so I have 5 different flashing patters, plus my flashers work normally now.  Also used a trailer integrator for the signal part.  I'll get some video and more pics and post a thread in a week or so.

here's a schematic on the wiring of the integrator with diodes so my signal part of the light would work seperate from the brake light on each lense.  The signals are cool looking in person and worth the extra time in wiring by themselves on the circuit board.

How'd you connect the trickflasher?



[justinsls1camaro]

where do i get the Motorhead Undertail



[InfiniteReality]

thanks!  Just took time, about 3 hours of just soldering.

 Basically just cut the back of the housing off (where bulbs plug in), cut a blank circuit board over each area, layout the LEDs the best way possible and start soldering!  I wired 6 LEDs in series and then 3 sets of those in parallel with a 33 ohm (if I remember right) resistor per set.  I also have the signals integrated in it as well.  Just installed a trickflasher.com so I have 5 different flashing patters, plus my flashers work normally now.  Also used a trailer integrator for the signal part.  I'll get some video and more pics and post a thread in a week or so.

here's a schematic on the wiring of the integrator with diodes so my signal part of the light would work seperate from the brake light on each lense.  The signals are cool looking in person and worth the extra time in wiring by themselves on the circuit board.

How'd you connect the trickflasher?

Just follow the directions that comes with the Trickflasher



[Smoke_Dog]

I have seen the UFO and I find it tacky because of the clear lens. You can see the tail light and the little signal lights, If the lens were red it would look much better. That's just my opinion.

Like this.....

I see that you have been to CSC before! Nice shop! I owned both the Top Gun and the UFO, you can't go wrong either way!!!



<!--EDIT|Smoke_Dog
Reason for Edit: None given...|1148816610 -->



[frisbee]

where do i get the Motorhead Undertail

From Motorhead , he's the board owner on Suzukihayabusa.org



[ken2219]

Here's a Zonic undertail..



[Yarbrouc]

Check out roaringtoyz.com. They have a nice UFO undertail and a new peg mount license plate holder. Really most of their accessories are top notch! I am going to order the UFO when I get back from being deployed (atleast we have computers).



[TorontoBusa]

(InfiniteReality @ May 02 2006,11:29) Dang it double posted and can't delete it!

 sorry!

Here's my modified UFO that I modified before I ever put on the bike!

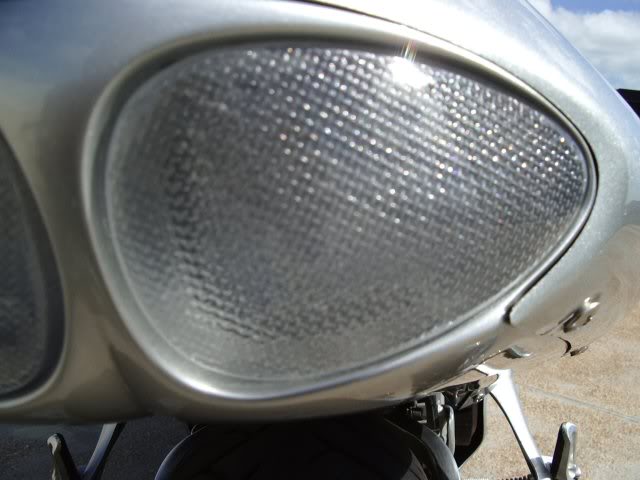

 My modded one is the absolute brightest tailight ever on a 'busa!  122 red 20000mcd LEDs, 61 per lense.  Not only does it look completely empty when off, but no tiny circles either when on!

 Pictures don't do the LED justice, if looking directly at them, you still see 122 dots for the following 5 minutes!

Love the UFO!

Does anyone have a side pic of the UFO?

I find, others look cool from behind, but the bike looks cut off from the side (like my current one)

I'm still on the fence of UFO, or the Brazil one on Ebay that uses the stock light (which I like as well)

Please post some UFO side pic's

Thanks



[gat0r]



[Super Trucker]

(frisbee @ Jun. 23 2006,02:10)

(justinsls1camaro @ May 27 2006,21:04) where do i get the Motorhead Undertail

From Motorhead , he's the board owner on Suzukihayabusa.org

here is the link to his store. clicky



[Jynx]

Yeah, good luck ever getting the MH undertail...if you place your order now and send the $$$...you may get it before the end of the summer.



[frisbee]

It takes alittle time for him to get them , it depends on how many are wanted. woth the wait though



[nme617]

concept cyclopes



[mike04busa]

(Bansh @ Jan. 19 2006,02:16) Usually you get what you pay for, but so far I am happy with this undertail that I got off Ebay $99.00. Comes complete with LED's and wiring harness. Havem't seen what the road rocks are going to do to it(New England still snow on the ground). It's fiberglass gel coated, and the black matches?

Hijack, where are you in ct?? got the same undertail I would be interested in changing the lights the brake lights are not too bright..



[TorontoBusa]

(Bigbody @ May 02 2006,14:17)

(nitrousjunkie @ May 02 2006,14:02)

(arey @ Jan. 15 2006,09:48) I have seen the UFO and I find it tacky because of the clear lens. You can see the tail light and the little signal lights, If the lens were red it would look much better. That's just my opinion.

Like this.....

I want one like this with regular bulbs and integrated turn signals.  Anyone know where I can get one like that?

That does look VERY cool!

But Talked to UFO, and that bike is a one of bike, and they will not sell you the lens in Red...(Why I have no clue, the term stupid comes to mind)

I think it should come with both clear & red, like the competition, especially considering that is one very expensive undertail!



[rockadaous]

here's my hotbodies
