rear brake pad installation

[gurrera]

I am going to replace my rear brake pads and rotor.

How do I know if I have the spring on the right way?

Does any one have pictures of how the spring goes back in?

thank you Gurrera



[Ludicrous Speed]

What model, for starters. Gen 1 and Gen 2 are totally different



[Blanca BusaLess]

What year bike? Your Avatar looks like a genI?




Ps.......We live in Florida not Flordia



[dadofthree]

He has a '99, Caliper on bottom



[RussellJ]

Oh man its such a hard thing to do... I dont think you should try it... Very complicated...



[gurrera]

Blanca Busa
It won't let me change the spelling of Florida???

I have a 1999

thanks



[IG.]

Pain in the neck. Mirror, flashlight, soft mat for your knees, and protective goggles are your friends. Plus lots of patience.

I replaced mine while the caliper was out for rebuilding. Maybe if you take the caliper off it will be easier.



[Ludicrous Speed]

Oh man its such a hard thing to do... I dont think you should try it... Very complicated...

You are joking, right??

It is a PITA the first time, but it is NOT hard



[Ludicrous Speed]

Give me a minute to pull up the drawing. It is definitely easier to take the caliper loose from the hanger. DON'T take the line off..........



[RussellJ]

You are joking, right??

It is a PITA the first time, but it is NOT hard

Hardest thing he could ever do on the bike....



[busa186]

The first time I tried. I look really hard at it before I took it off but could not really see, so I said " I will pull this out and..." the entire brake whim spring fell on Tue ground. Noooooo. I used the out line on the old pad and looked online at the manual to see how the spring went on. Not as hard as it looks just be patient.
Posted via Mobile Device



[Ludicrous Speed]

Hardest thing he could ever do on the bike....

OK, I missed the sarcasm

Well, I cannot get the manual to DL for me tonight, so no diagrams.

You could try Ron Ayers, look at the microfiche, it may help



[tmf2004]

I did mine a few months back... just followed the manual.. It wasn't bad..



[pashnit]

Sam, don't listen to these guys, it's super-simple. Coulda swore I've shot pics of the swap, but ah well. Here's from memory. Make sure you wear some nitrile/surgical gloves (available at any auto parts store). Once you do this a couple times takes me about 10-15 minutes to swap them out.

1) Two bolts on the brake caliper hanger. Take those out.

2) On the brake bar, there's one more. Take that out too. Put all three bolts back in their original holes.

3) Now you can hold the rear caliper in your palm. It's upside down.

4) Turn it over & you'll see a black plastic dust cap. Gently squeeze it and it will pop right out.

5) Now you can see two pins that run through the caliper & pads. There are tiny cotter pins on the ends.

6) Before you take the pads out, you should separate the pistons. Ideally, you should get them recessed back completely inside the caliper. Lots of hillbilly ways to do this.
-take a large needle-nose pliers, insert it between your OLD pads and twist.
-use a small wood working clamp to compress the pistons
-use a very large pliers & simply squeeze them back in place.
You shouldn't have to fight them. Some gentle pressure, and they'll move.

7) Gently take the cotter pins out with a needle nose pliers. Don't loose these. Put them down on a white paper towel.

6) The pads can float back and forth over the pins. There are two spring thingys that attach to the tops of the pads. Springs as in spring-loaded. Note which side the springs are on and how they attach to the pad.

Put your thumbs over the tops of the pads and slowly pull the pins out with a needlenose one at a time. You'll release the two springs and set those aside. There also also backing plates on the backs of the pads. They are left and right.

7) When you disassemble- Disassemble in order, and put the pieces down on your white paper towel in order as you take them off.

8) Slide the second pin out and the pads will drop out the bottom of the caliper. Still holding the caliper in your palm, take your new pads and insert the new set right back up into the caliper. Don't forget to swap over the the backing plates.



[pashnit]

Chapter II.

9) Once you've slid in the new pads, got the backing plates on correctly, then slid one of the pins in...

10) Take one of the springs and slide them onto the tops of the brake pads. The springs are interchangeable Left and Right.

You can also do this before you slide in the first pin. The opposite side of the spring will stick up a little. Take the second pin and start sliding that in. You'll need to line it all up & push the springs down just a bit to get them under the pin.

11) Now that you got both pins in, put the cotter pins back in. Clip on the dust cap and done.

12) If you forgot to separate the pistons before you did the reassembly, you'll likely notice this about now. The newly loaded caliper should just slide right onto your rotor. Attach the two hanger bolts and the brake bar bolt. Make sure to use loctite on all your bolts during reassembly.

You mentioned the swapping the rear rotor, Just take the rear tire off like you normally would and unbolt. Slap on the new on and bolt it on. Don't forget the loctite.

If you need Brake Pads, we have them in stock.

Galfer Brake Pads: Race, HH Sintered, Organic, Semi-Metallic | PashnitMoto



[kml]

Sam, don't listen to these guys, it's super-simple. Coulda swore I've shot pics of the swap, but ah well. Here's from memory. Make sure you wear some nitrile/surgical gloves (available at any auto parts store). Once you do this a couple times takes me about 10-15 minutes to swap them out.

1) Two bolts on the brake caliper hanger. Take those out.

2) On the brake bar, there's one more. Take that out too. Put all three bolts back in their original holes.

3) Now you can hold the rear caliper in your palm. It's upside down.

4) Turn it over & you'll see a black plastic dust cap. Gently squeeze it and it will pop right out.

5) Now you can see two pins that run through the caliper & pads. There are tiny cotter pins on the ends.

6) Before you take the pads out, you should separate the pistons. Ideally, you should get them recessed back completely inside the caliper. Lots of hillbilly ways to do this.
-take a large needle-nose pliers, insert it between your OLD pads and twist.
-use a small wood working clamp to compress the pistons
-use a very large pliers & simply squeeze them back in place.
You shouldn't have to fight them. Some gentle pressure, and they'll move.

7) Gently take the cotter pins out with a needle nose pliers. Don't loose these. Put them down on a white paper towel.

6) The pads can float back and forth over the pins. There are two spring thingys that attach to the tops of the pads. Springs as in spring-loaded. Note which side the springs are on and how they attach to the pad.

Put your thumbs over the tops of the pads and slowly pull the pins out with a needlenose one at a time. You'll release the two springs and set those aside. There also also backing plates on the backs of the pads. They are left and right.

7) When you disassemble- Disassemble in order, and put the pieces down on your white paper towel in order as you take them off.

8) Slide the second pin out and the pads will drop out the bottom of the caliper. Still holding the caliper in your palm, take your new pads and insert the new set right back up into the caliper. Don't forget to swap over the the backing plates.

I'd take the old pads out, then clean around the pistons before you push them back in so as not to drive dirt pass the seals. The you can use the old pads to push the pistons back in.

cheers
ken



[2006busa]

Wow your making this way harder than it needs to be if you ask me. It should be pretty straight forward. I mean come on its a break caliper. Not an engine rebuild
Posted via Mobile Device



[gurrera]

Thanks for all the help.

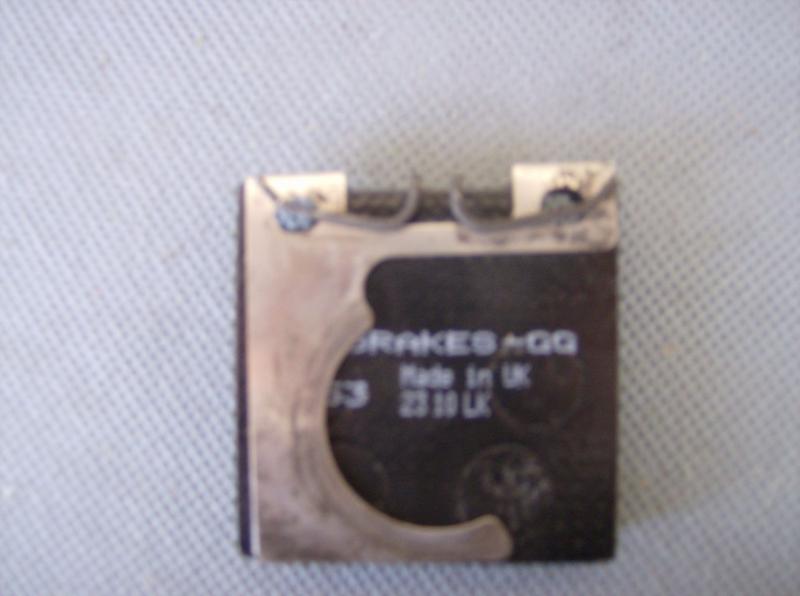

But I still don't know how the sprig goes.???

Like A or B?

Thanks
A

B



[jsb52rides]

Sam, don't listen to these guys, it's super-simple. Coulda swore I've shot pics of the swap, but ah well. Here's from memory. Make sure you wear some nitrile/surgical gloves (available at any auto parts store). Once you do this a couple times takes me about 10-15 minutes to swap them out.

1) Two bolts on the brake caliper hanger. Take those out.

2) On the brake bar, there's one more. Take that out too. Put all three bolts back in their original holes.

3) Now you can hold the rear caliper in your palm. It's upside down.

4) Turn it over & you'll see a black plastic dust cap. Gently squeeze it and it will pop right out.

5) Now you can see two pins that run through the caliper & pads. There are tiny cotter pins on the ends.

6) Before you take the pads out, you should separate the pistons. Ideally, you should get them recessed back completely inside the caliper. Lots of hillbilly ways to do this.
-take a large needle-nose pliers, insert it between your OLD pads and twist.
-use a small wood working clamp to compress the pistons
-use a very large pliers & simply squeeze them back in place.
You shouldn't have to fight them. Some gentle pressure, and they'll move.

7) Gently take the cotter pins out with a needle nose pliers. Don't loose these. Put them down on a white paper towel.

6) The pads can float back and forth over the pins. There are two spring thingys that attach to the tops of the pads. Springs as in spring-loaded. Note which side the springs are on and how they attach to the pad.

Put your thumbs over the tops of the pads and slowly pull the pins out with a needlenose one at a time. You'll release the two springs and set those aside. There also also backing plates on the backs of the pads. They are left and right.

7) When you disassemble- Disassemble in order, and put the pieces down on your white paper towel in order as you take them off.

8) Slide the second pin out and the pads will drop out the bottom of the caliper. Still holding the caliper in your palm, take your new pads and insert the new set right back up into the caliper. Don't forget to swap over the the backing plates.

Thank you for your comment. I cannot believe the lame comments that many put. It's like they are trying to hide something. This isn't hard at all, especially for your insight to how the pins work. Just a little verification was all I was looking for and you did that.

Every vehicle is different. At least, everyone I have worked on. I've been riding for 48 years, driving for 53, working on both bikes and cars for 46.

I don't have time for immature comments. So, thank you very much.
