Let the mods begin…..

[c10]

ABS is still a stand alone it looks to be .



[Dennis]

ABS is still a stand alone it looks to be .

And the fly by wire throttle has cables!



[c10]

And the fly by wire throttle has cables!

need photos what does the cruise control module look like ?



[Dennis]

need photos what does the cruise control module look like ?

Lol not sure! I’m guessing it is just an enhancement to the fly by wire. This may be same as 1k but the cables go to a module on top of the engine which isn’t what I expected. Will get a pic next time the tank is up. The control is just a momentary swatch on the right side.



[Busapilot08]

need photos what does the cruise control module look like ?

According to the service manual, the cruise control system is controlled by the ECM.



[c10]

According to the service manual, the cruise control system is controlled by the ECM.

still should be a elect servo to operate the throttle bodies ?



[Dennis]

still should be a elect servo to operate the throttle bodies ?

The same one as the fly by wire already uses I assume. The throttle cables go to a control module, then servos run the throttle blades? I would lift the tank but it isn't mine and it isn't as easy as taking a couple screws out. Gotta take the plastic cover off first.



[Dennis]



[fallenarch]

My BMW doesn't have a special CC module - it's all done in the ECU. It uses the throttle by wire control to adjust the throttle. It looks at the speed you set, the speed you are going, and then adjusts just as if you turned the throttle yourself. The cool thing is if you turn the throttle past where the CC has the throttle, you speed up. Also, everything has a switch (brakes, clutch, gear change, etc.) so it knows when you touch something it shuts the CC off.


This is not some special BMW thing, they all do this basically.



[Dennis]

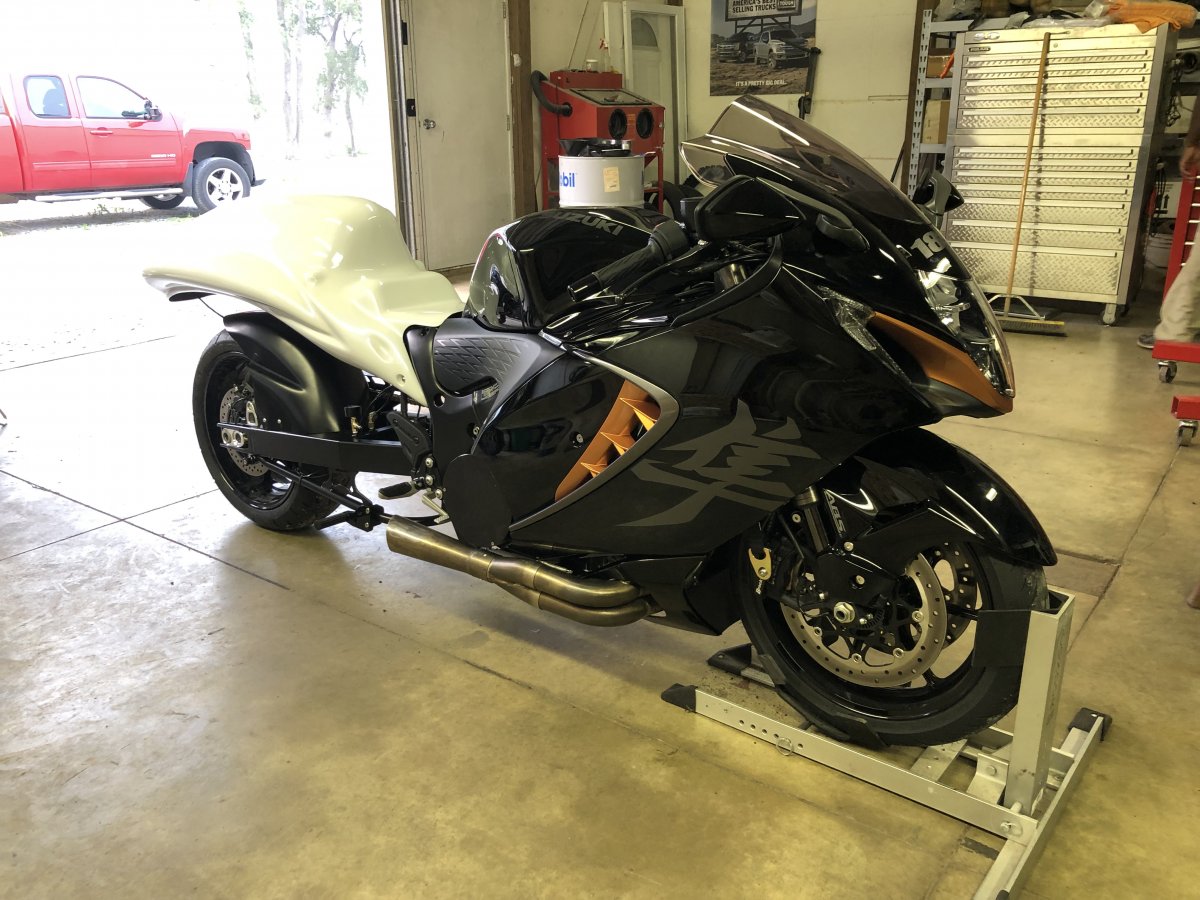

Exhaust hole and temporary tail.



[Dennis]

Best pic I can do on the fly by wire throttle



[Wolffmann34]

View attachment 1637034It will be a couple weeks before his exhaust arrives. We have the oil pan ready to go on. It needs a larger than standard clevis for the air shifter.

Pingel told me they had to machine open the clevis to fit the gen3 shifter



[Wolffmann34]

What wire did you connect the tether kill
Switch to?



[Dennis]

What wire did you connect the tether kill
Switch to?

View attachment 1638683

Doesn’t have one yet but I expect it will be connected through the kickstand switch.



[Wolffmann34]

Doesn’t have one yet but I expect it will be connected through the kickstand switch.

Good plan, that wire is right in front of me as I read your message



[Dennis]



[Dennis]

PSA: Hill assist is a bad thing with an aftermarket swingarm.



[Dopey]

PSA: Hill assist is a bad thing with an aftermarket swingarm.

Ok I'm intrigued, what exactly happened??



[Dennis]

Ok I'm intrigued, what exactly happened??

Pulling into the trailer he killed it, the bike rolled backwards (with ignition on) and it rolled the caliper back. The caliper restraint is only for going forward. It pulled on the brake and ABS lines. Didn't look good, but it was ok.



[Dopey]

I'd like to know also. If the wait time on the ECU edit approach is pending, I'm interested in modding a Gen III GPS. I sent Greg a message.

Let's see how far this machine will go....

If you or @sjg34 or anyone else for that matter find out that the gen 3 sensor works on the gen 2 please let me/us know as I tried the cleaning thing and it did help a bit but definitely gotta replace mine.
